Kioxia

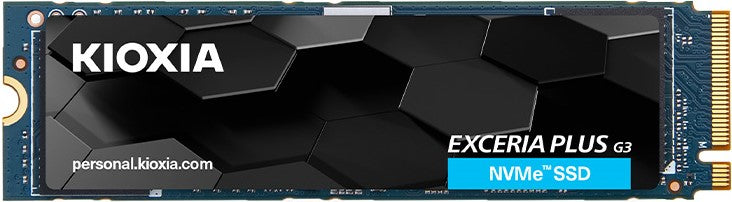

Kioxia Exceria Plus G3 1TB Solid State Drive

Kioxia Exceria Plus G3 1TB Solid State Drive

Regular price R 1,438.80
Regular price Sale price R 1,438.80
Sale Sold out
Title
Quantity

EXCERIA PLUS G3 SSD 1TB LSD10Z001TG8 - High-performance 1TB NVMe M.2 2280 SSD with PCIe Gen4x4 interface and NVM Express 1.4 protocol. Uses BiCS FLASH™ TLC memory. Sequential read speed up to 5,000 MB/s and write speed up to 3,900 MB/s. Random read/write IOPS up to 770,000/950,000. Endurance rated at 600 TBW with MTTF of 1.5 million hours. Dimensions 80.15 x 22.15 x 2.63 mm and weighs 7 grams. Operating temp 0-85°C and storage temp -40 to 85°C. Certified RoHS compliant with shock resistance and vibration tolerance. Power consumption about 4.9 W active.


Product Overview

The KIOXIA EXCERIA PLUS G3 SSD series delivers high-performance storage with a PCIe 4.0 interface, offering sequential read/write speeds of up to 5,000/3,900 MB/s and random IOPS of 770,000/950,000 (1TB). Designed for gamers and video editors, it features BiCS FLASH NVMe 1.4 technology in a compact, single-sided M.2 2280 form factor, supporting up to 2TB capacity for mainstream desktops and notebooks. Its slim design enables easy motherboard installation, reducing cable clutter for sleek system upgrades.


Features

•BiCS FLASH™
•NVMe™ 1.4 Technology
•M.2 2280 Form Factor
•PCIe® Gen4 x4
•SSD Utility Management Software


Specifications

•Product Code: LSD10Z001TG8
•Description: EXCERIA PLUS G3 SSD 1TB
•Capacity: 1TB
•Form Factor: M.2 Type 2280-S4-M
•Interface: PCI Express® Base Specification Revision 4.0 (PCIe®)
•Flash Memory type: BiCS FLASH™ TLC
•Interface Maximum Speed: 64 GT/s (PCIe® Gen4x4)
•Dimension (Max: LxWxH): 80.15 x 22.15 x 2.63 mm
•Interface Protocol: NVM Express™ Base Specification 1.4
•Weight: 1TB: 7.0 g (typ.)
•Max Sequential Read Speed*1: 5,000 MB/s
•Max Sequential Write Speed*1: 3,900 MB/s
•Max Random Read Speed*2: 1TB: 770,000 IOPS
•Max Random Write Speed*2: 950,000 IOPS
•Endurance: TBW*3: 1TB: 600 TB
•MTTF: 1.5 million hours
•Operating Temperature: 0 ℃ (Ta) to 85 ℃ (Tc)
•Storage Temperature: -40 ℃ to 85 ℃
•Certification: RoHS compliant*5
•Shock Resistance: 9.806 km/s2 {1,000 G} 0.5 ms half sine wave
•Vibration: 196 m/s2 {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis
•Supply Voltage: 3.3 V ±5 %
•Power Consumption
•PS3: 50 mW (typ.)
•PS4: 5 mW (typ.)
•Power Consumption (Active): 1TB: 4.9 W (typ.)
