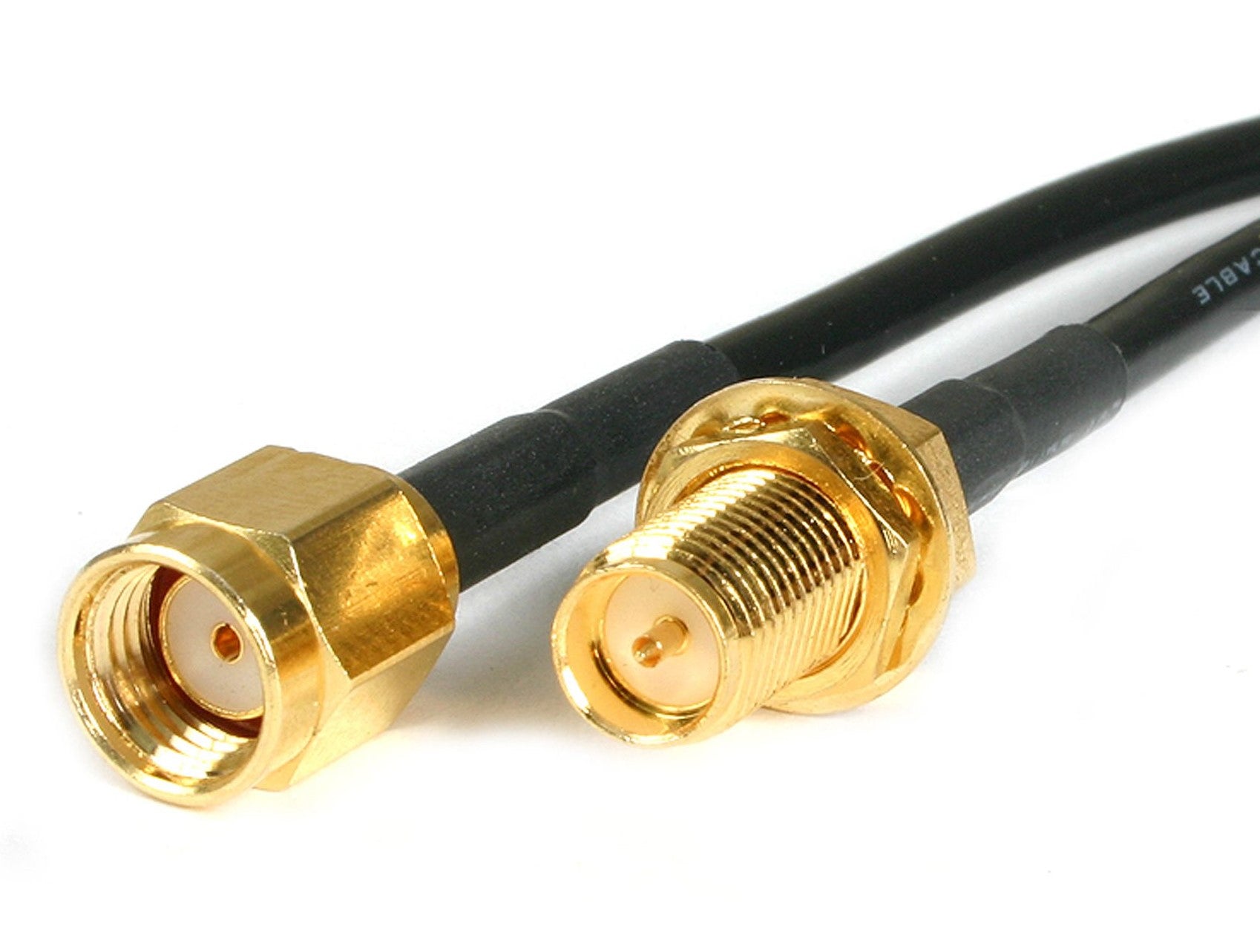

Intellinet Antenna SMA plug to Reverse SMA plug Cable

Intellinet Antenna SMA Plug to Reverse SMA Plug Cable – Connector 1: SMA plug (male), Connector 2: Reverse SMA plug (RP-SMA female), Cable Type RG-58/U coaxial, Impedance 50 Ohms (+/- 3 Ohms), Center Conductor Strand bare copper wire 0.8 mm O.D. (+/- 0.2 mm), Insulation Solid polyethylene 2.9 mm O.D. (+/- 0.1 mm), Shield Bare copper wire 3.12 mm O.D. (+/- 0.008 mm), Jacket Material PVC (Tellon) 5 mm O.D. (+/- 0.01 mm), Length 10 ft (3.0 m), Signal Loss 0.21 dB per ft, Packaging Retail box, Warranty 2-year limited

Product Overview

The Intellinet 790406 antenna cable is ideal for extending antenna reach where one device requires an SMA male connector and the other a reverse SMA female connector. It maintains high signal integrity due to quality materials and manufacturing standards. Perfect for networking, wireless, or radio applications needing a robust, reliable coaxial cable solution.

Specifications

- Product Code : 790406

- Product Description : Intellinet Antenna SMA plug to Reverse SMA plug Cable

- Connector 1: SMA plug (SMA male)

- Connector 2: Reverse SMA plug (RP-SMA plug, Reverse SMA female)

- Cable Type: RG-58/U coaxial

- Impedance: 50 Ohms (+/- 3 Ohms)

- Center Conductor: Strand bare copper wire, 0.8 mm O.D. (+/- 0.2 mm)

- Insulation: Solid polyethylene, 2.9 mm O.D. (+/- 0.1 mm)

- Shield: Bare copper wire, 3.12 mm O.D. (+/- 0.008 mm)

- Jacket Material: PVC (Tellon), 5 mm O.D. (+/- 0.01 mm)

- Length: 10 ft. (3.0 m)

- Signal Loss: 0.21 dB per ft.

- Warranty: 2-year limited

- Packaging: Retail box
