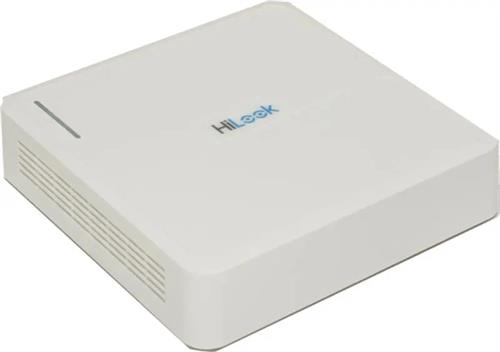

HiLook 8 Channel Hybrid High Definition Stand Alone DVR

R 898.80

Sale Sold out

Title HiLook 8 Channel Hybrid High Definition Stand Alone DVR

HiLook 8 Channel Hybrid High Definition Stand Alone DVR - Support H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression, 8 Channel Analogue and HD-TVI video input, BNC interface (1.0Vp-p, 75 Ω),supporting coaxitron connection, Audio Input: 1-ch RCA and 8-ch via coaxial cable Audio via coaxial cable, SATA Interface Support up to 4TB Hard disk drive, 10/100 self-adaptive Ethernet interface 2x USB 2.0 Ports on Rear panel, Supports real-time 1080p lite when enabled the image effect is similar to 1080p, HDMI/VGA output at up to 1920 × 1080 resolution, IP 2ch Up to 10-ch IP camera input (up to 5 MP), Signal Input HDTVI/AHD/CVI/CVBS/IP, Deep learning based human and vehicle targets classification of Motion Detection 2.0, 1U Mini White Unit, Smart search for efficient playback, Remote viewing from anywhere on pc and cell phone, Retail Box , 1 Year Warranty

Product Overview

HiLook 8CH Hybrid DVR High Definition Stand Alone DVR

Features

•H.265 Pro+/H.265 Pro/H.265 video compression

•HDTVI/AHD/CVI/CVBS/IP video input

•Up to 10-ch IP camera input (up to 5 MP)

Specifications

•Product code: DVR-108G-M1

•Description: HiLook 8CH Hybrid DVR High Definition Stand Alone DVR

•Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

•Encoding Resolution: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF

•For 720p stream access: 720p/WD1/4CIF/VGA/CIF

•For SD stream access: WD1/4CIF/VGA/CIF

•Main stream:For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps

•For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps

•For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

•For 1080p and 720p stream access CIF/QVGA@15 fps

•For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)

•Support H.265+/H.265/H.264+/H.264 IP cameras

•BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

•HDTVI Input:1080p25, 1080p30, 720p25, 720p30

•AHD Input: 1080p25, 1080p30, 720p25, 720p30

•HDCVI Input: 1080p25, 1080p30, 720p25, 720p30

•HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

•VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

•Video Output Mode: HDMI/VGA simultaneous output

•Audio Input: 1-ch RCA (2.0 Vp-p, 1 KΩ)

•Audio Output: 1-ch, RCA (Linear, 1 KΩ)

•TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS

•1, RJ45 10/100 Mbps self-adaptive Ethernet interface

•Power Supply: 12 VDC, 1.5 A

•200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)

•≤ 1 kg (without HDD, 2.2 lb.)
